freeza Posted April 22, 2009 Share Posted April 22, 2009 So, I decided to change my resolution from its native to 1360x768 and when doing this, Windows 7 does not stretch the image the way Windows Vista/XP does, I'm left with a resized resolution in the middle of my monitor with black areas around it. Is there any registry key or way to fix this so that it behaves like previous versions of windows? Running build 7077 with an ATi Radeon X1950pro Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/ Share on other sites More sharing options...
Piggy Posted April 22, 2009 Share Posted April 22, 2009 Very thin lines, right? I got used to it heh. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886214 Share on other sites More sharing options...
freeza Posted April 22, 2009 Author Share Posted April 22, 2009 Very thin lines, right? I got used to it heh. Not quite....my monitor's native resolution is 1680x1050 and i'm resizing to 1360x768. So i'm left with huge black areas around the monitor where normally the it would stretch to fit. Pressing the "auto" button on my monitor does not help. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886228 Share on other sites More sharing options...
-Hiroshi- Posted April 22, 2009 Share Posted April 22, 2009 Not quite....my monitor's native resolution is 1680x1050 and i'm resizing to 1360x768.So i'm left with huge black areas around the monitor where normally the it would stretch to fit. Pressing the "auto" button on my monitor does not help. Perhaps your changing the aspect ratio from it's native format to another format? You can change the orientation in the Display dialog under Resolution. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886264 Share on other sites More sharing options...
TAZMINATOR Posted April 22, 2009 Share Posted April 22, 2009 Not quite....my monitor's native resolution is 1680x1050 and i'm resizing to 1360x768.So i'm left with huge black areas around the monitor where normally the it would stretch to fit. Pressing the "auto" button on my monitor does not help. Did you try the settings on your monitor? I mean other than that auto button which you were saying earlier. The settings window that you will find the zoom in/out, expand to the monitor screen or shrink.. even the rotate the screen. If you are not sure what I am saying, I suggest that you check the monitor's manual that comes with your monitor or on the website. If not working, try to go to your monitor's website for the drivers. Since you have Win7, it could be a bug. Draconian Guppy and The Evil Overlord 2 Share Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886266 Share on other sites More sharing options...
-Hiroshi- Posted April 22, 2009 Share Posted April 22, 2009 Did you try the settings on your monitor? I mean other than that auto button which you were saying earlier. The settings window that you will find the zoom in/out, expand to the monitor screen or shrink.. even the rotate the screen. If you are not sure what I am saying, I suggest that you check the monitor's manual that comes with your monitor or on the website.If not working, try to go to your monitor's website for the drivers. Since you have Win7, it could be a bug. +1 Usually monitors will have ways to adjust it so you can be rid of the black borders around your picture, happens a lot when people use LCD monitors with VGA connectors rather than DVI connectors Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886288 Share on other sites More sharing options...
SQ1 Posted April 22, 2009 Share Posted April 22, 2009 It's not a driver thing? You have updated your ATI's Windows 7 drivers? Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886294 Share on other sites More sharing options...
dafin0 Posted April 22, 2009 Share Posted April 22, 2009 does the same with my monitor, well i think its the same thing.. there is only black spaces at the top and bottom, but this seams more like a feature than a bug Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886308 Share on other sites More sharing options...
Napalm Frog Posted April 22, 2009 Share Posted April 22, 2009 Yeah, either the monitor is refusing to scale the picture, or the driver is set to non-scaling. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886310 Share on other sites More sharing options...

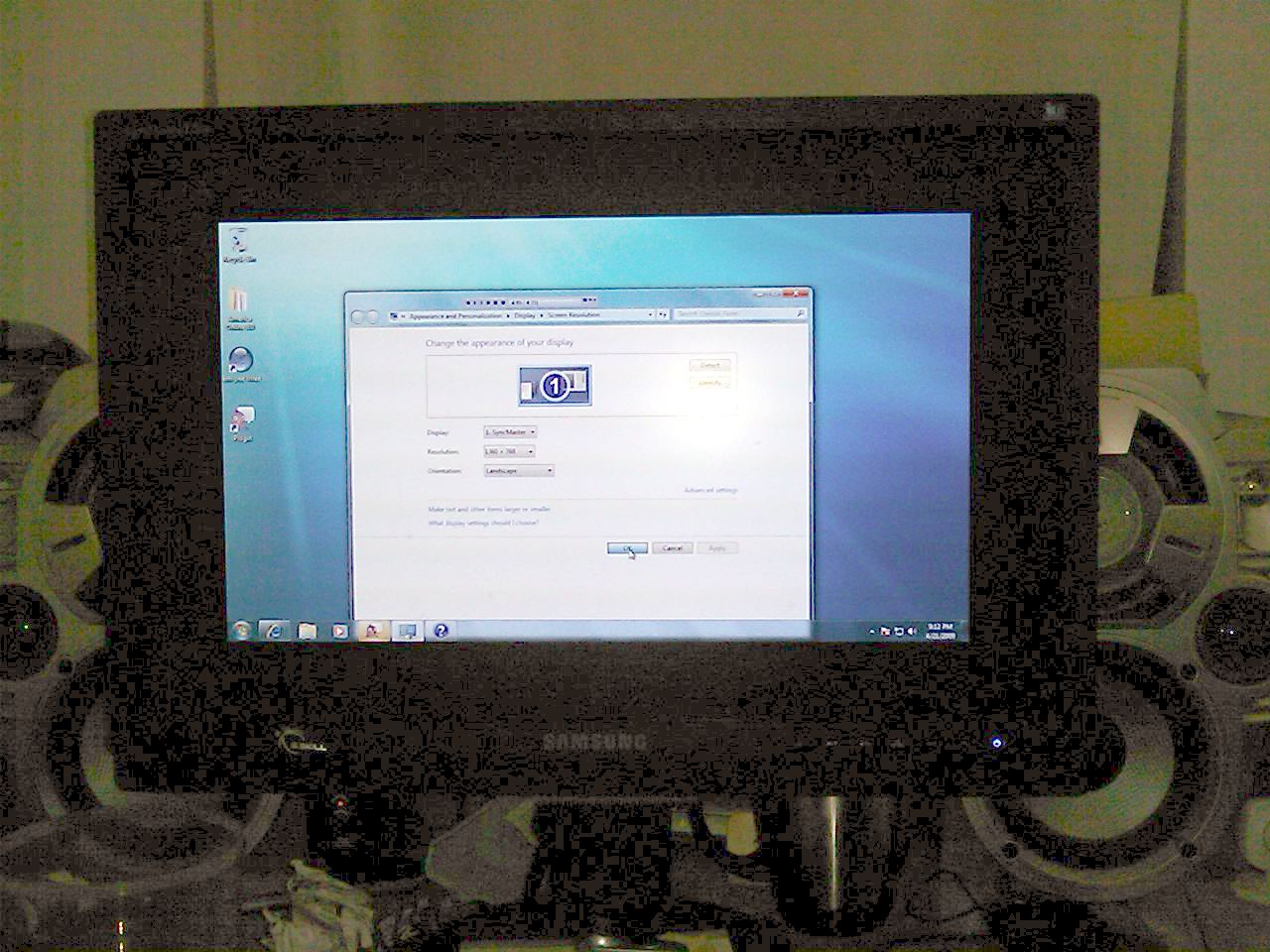

freeza Posted April 22, 2009 Author Share Posted April 22, 2009 Thanks for the help guys, but i'm assuming this is something new in Windows. Whenever i'd change the resolution in Vista/XP it would do it just fine and have the whole picture take up my monitor's screenspace (even it looked sort of blurry) Now, however, changing the resolution keeps the text crisp and just resizes the screen in the center of my monitor, leaving me with black borders similar to widescreen movies.... Like, if I were to take a saw and saw off the black borders of my monitor it would look fine. What I want it to do is to just fill up my monitor's screenspace like previous versions of Windows would do when you change the resolution, let me see if i can capture a picture to explain what i'm talking about.. I've tried the latest drivers 9.3 and they won't install. It stops with an error message. Is there a way to enable scaling with Microsoft's drivers via registry? Also, i am using a DVI cable :) Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886316 Share on other sites More sharing options...
soumyasch Posted April 22, 2009 Share Posted April 22, 2009 The scaling is done by the driver. Check your driver settings controls. On an nvidia driver, it is accessible at Display->Change flat panel scaling in the nvidia control panel. I am not aware of ATI. But it should be similarly described. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886324 Share on other sites More sharing options...
duke dynamite Posted April 22, 2009 Share Posted April 22, 2009 I had that same issue with an ATi driver at one point with Vista. I would uninstall the driver, and try the driver available from Windows Update. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886330 Share on other sites More sharing options...

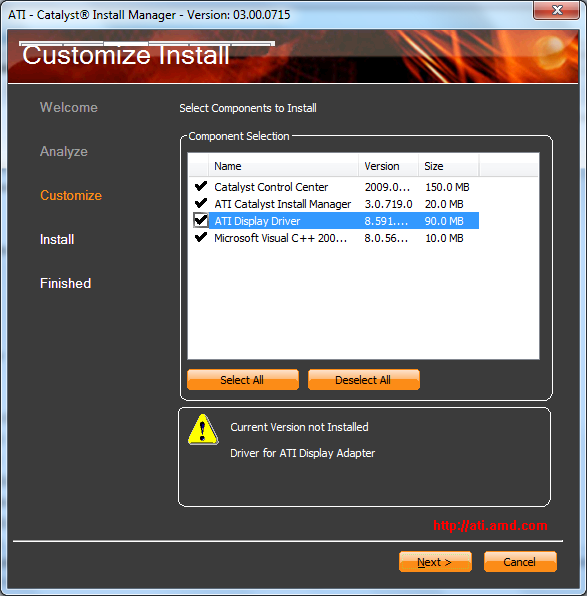

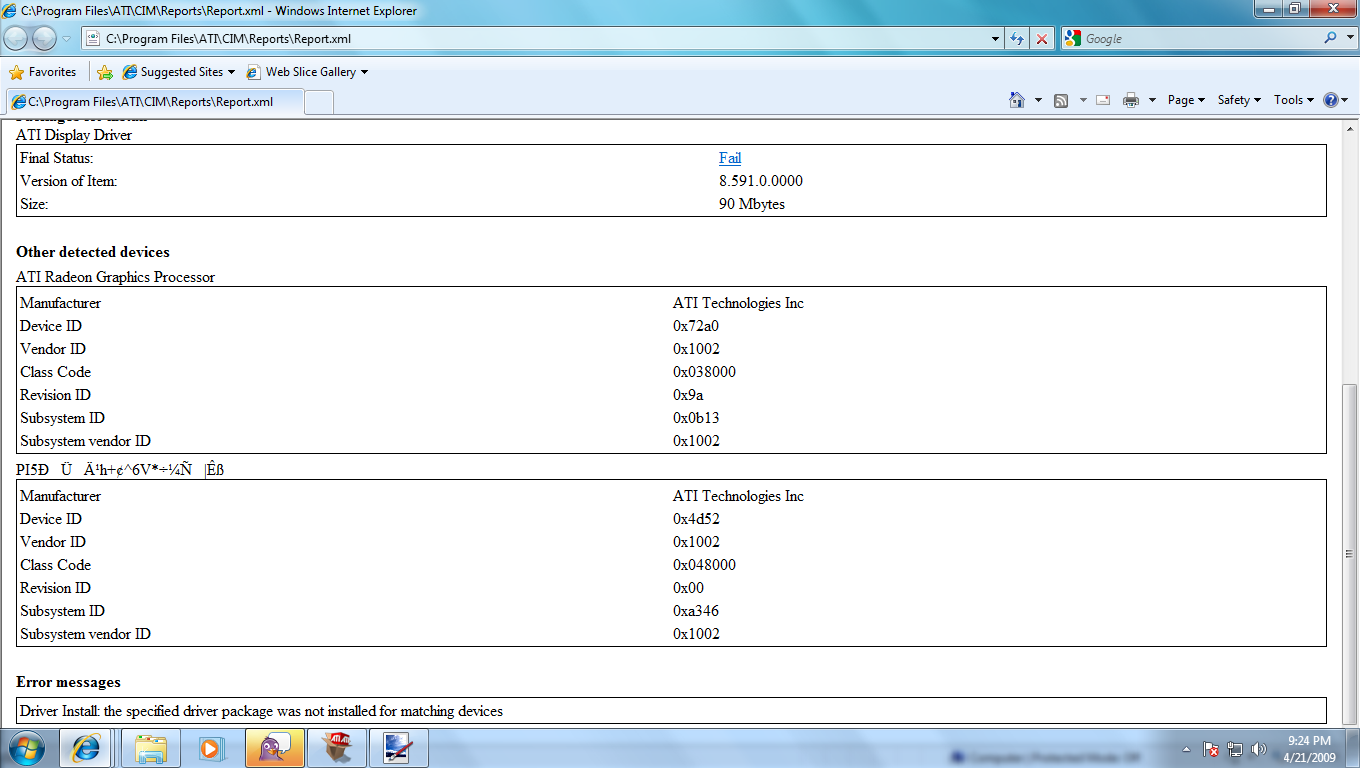

freeza Posted April 22, 2009 Author Share Posted April 22, 2009 The scaling is done by the driver. Check your driver settings controls. On an nvidia driver, it is accessible at Display->Change flat panel scaling in the nvidia control panel. I am not aware of ATI. But it should be similarly described. Thanks, now we're getting somewhere... However, I don't have any driver options available with the default Microsoft ones, and ATi Catalyst software from March (9.3) won't install and the newest 9.4 drivers no longer support my card (Radeon X1950pro) Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886338 Share on other sites More sharing options...
giantpotato Posted April 22, 2009 Share Posted April 22, 2009 Install the 9.4 (or 9.2 drivers if you have an older ATi card) with the catalyst control center. Under one of the settings in the catalyst control center there is the option to stretch the screen. This has nothing to do with Windows 7 actually, it would happen in Vista too if it was set to not-stretch in the drivers. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886352 Share on other sites More sharing options...
Inctye Posted April 22, 2009 Share Posted April 22, 2009 9.4 improved some of the desktop problems with multimonitor setups, but I am having the same issue as well when the desktop is extended. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886370 Share on other sites More sharing options...
freeza Posted April 22, 2009 Author Share Posted April 22, 2009 Install the 9.4 (or 9.2 drivers if you have an older ATi card) with the catalyst control center. Under one of the settings in the catalyst control center there is the option to stretch the screen. This has nothing to do with Windows 7 actually, it would happen in Vista too if it was set to not-stretch in the drivers. Cool, I got 9.2 to install and the Catalyst Control Center works. However, I can't find the option to stretch or enable scaling of any kind. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886382 Share on other sites More sharing options...
TAZMINATOR Posted April 22, 2009 Share Posted April 22, 2009 Thanks for the help guys, but i'm assuming this is something new in Windows.Whenever i'd change the resolution in Vista/XP it would do it just fine and have the whole picture take up my monitor's screenspace (even it looked sort of blurry) Now, however, changing the resolution keeps the text crisp and just resizes the screen in the center of my monitor, leaving me with black borders similar to widescreen movies.... Like, if I were to take a saw and saw off the black borders of my monitor it would look fine. What I want it to do is to just fill up my monitor's screenspace like previous versions of Windows would do when you change the resolution, let me see if i can capture a picture to explain what i'm talking about.. I've tried the latest drivers 9.3 and they won't install. It stops with an error message. Is there a way to enable scaling with Microsoft's drivers via registry? Also, i am using a DVI cable :) Since you are using DVI mode... it's not video card. you need to adjust via monitor settings. Not display settings. Don't you see "Menu" on your monitor? If so, go there and find the window where you are able to adjust the screen which allow you to zoom in/out. I had that problem before when I was using my LCD TV for my computer using DVI cable. The Evil Overlord and Draconian Guppy 2 Share Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886386 Share on other sites More sharing options...
freeza Posted April 22, 2009 Author Share Posted April 22, 2009 Since you are using DVI mode... it's not video card. you need to adjust via monitor settings. Not display settings. Don't you see "Menu" on your monitor? If so, go there and find the window where you are able to adjust the screen which allow you to zoom in/out. I had that problem before when I was using my LCD TV for my computer using DVI cable. All of my settings to adjust the screen are greyed out on my monitor's menu options. Resolution changes worked fine in Vista, and i've just installed Windows 7 today, so it has to be something to do with either the driver or how Microsoft made changes to how Windows does resolution changes. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886392 Share on other sites More sharing options...
TAZMINATOR Posted April 22, 2009 Share Posted April 22, 2009 All of my settings to adjust the screen are greyed out on my monitor's menu options.Resolution changes worked fine in Vista, and i've just installed Windows 7 today, so it has to be something to do with either the driver or how Microsoft made changes to how Windows does resolution changes. Then you have 2 options: Plan A) Buy a VGA cable as long as your monitor and computer have VGA ports. This will solve this problem instantly. Plan B) Buy a new video card that is a win7 compatible. An associate will help you at the store to find the right card for DVI mode. Get nvidia card like that guy above. The Evil Overlord and Draconian Guppy 2 Share Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886422 Share on other sites More sharing options...
SQ1 Posted April 22, 2009 Share Posted April 22, 2009 It' really a driver thing. My nvidia driver has exactly the configuration for that: ATI should have the same, you can try to search a bit more or wait until they release a Windows 7 compatible driver for your card. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886452 Share on other sites More sharing options...

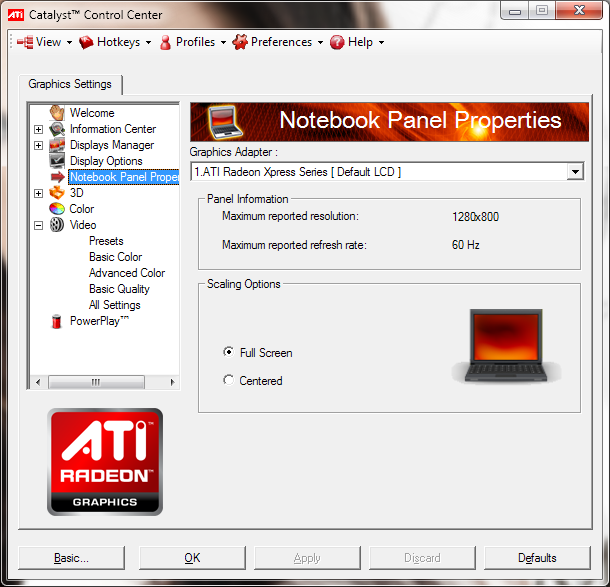

giantpotato Posted April 22, 2009 Share Posted April 22, 2009 (edited) This is where the option is for me on my notebook. On my desktop it's listed under Digital Panel (DVI) and has more options available. Do you have drivers for your monitor installed? Edited April 22, 2009 by giantpotato Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886464 Share on other sites More sharing options...
Guest xiphi Posted April 22, 2009 Share Posted April 22, 2009 Why not just increase the DPI instead of lowering the resolution if all you want is to make everything bigger. I have no issues with having the resolution scale to the size of monitor since my monitor automatically does it for me. Whether nVidia's drivers can do it properly is another matter. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886520 Share on other sites More sharing options...
freeza Posted April 22, 2009 Author Share Posted April 22, 2009 Thanks everyone for the help, looks like I will be getting another video card sooner or later. giantpotato, unfortunately mine doesn't have the options yours has. xiphi, tried that, and it works okay. I might have to use that as an alternative. At least now I know :-p Maybe ATi will create one more set of drivers for the "outdated" x1900 series that can address this by the time Windows 7 reaches RTM. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886548 Share on other sites More sharing options...
PrEzi Posted April 22, 2009 Share Posted April 22, 2009 Thanks everyone for the help, looks like I will be getting another video card sooner or later.giantpotato, unfortunately mine doesn't have the options yours has. xiphi, tried that, and it works okay. I might have to use that as an alternative. At least now I know :-p Maybe ATi will create one more set of drivers for the "outdated" x1900 series that can address this by the time Windows 7 reaches RTM. The 'legacy' graphic cards will be still supported on a quarterly basis. Some of the black border problems were resolved via Catalyst 9.4 drivers. Just wait for the package that is compatible with your cards, OR - mod the inf files to add support for X1900 series. If you can provide me with your Hardware ID I could mod the 9.4 inf for you. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886568 Share on other sites More sharing options...

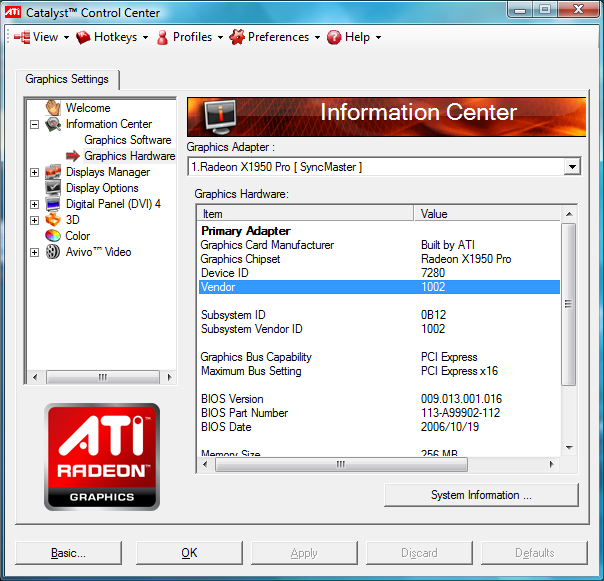

freeza Posted April 22, 2009 Author Share Posted April 22, 2009 The 'legacy' graphic cards will be still supported on a quarterly basis.Some of the black border problems were resolved via Catalyst 9.4 drivers. Just wait for the package that is compatible with your cards, OR - mod the inf files to add support for X1900 series. If you can provide me with your Hardware ID I could mod the 9.4 inf for you. Really? I would really appreciate that a lot.. Link to comment https://www.neowin.net/forum/topic/762180-windows-7-black-area-around-monitor/#findComment-590886782 Share on other sites More sharing options...
